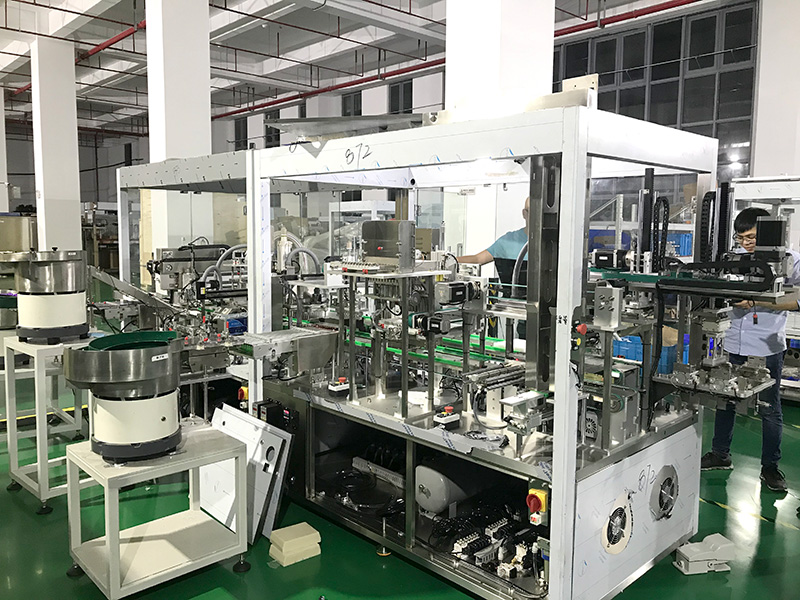

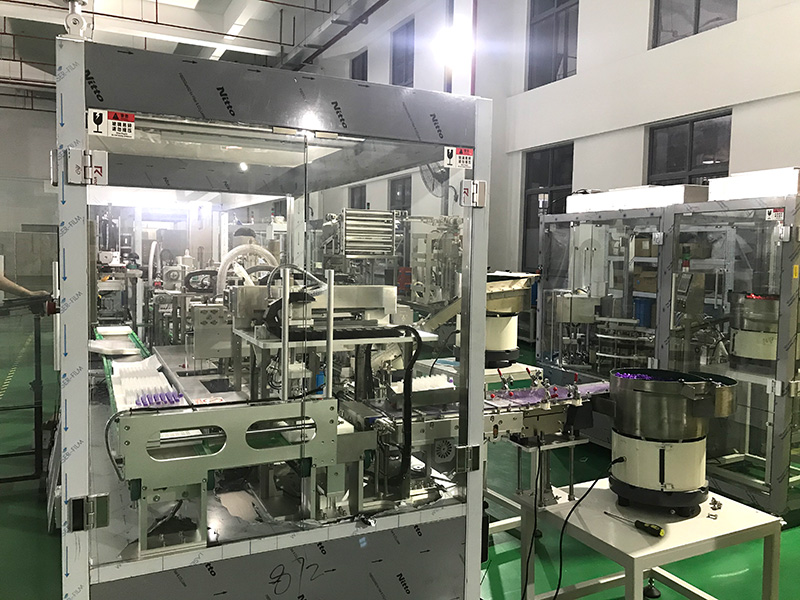

Micro Blood Collection Tube Assembly Production Line
Applicable Tube Size Φ13*75/100mm; Φ16*100mmWorking Speed 15000-18000pcs/hour
GMP-Compliant & Globally Certified
Fully compliant with EU GMP, US FDA, and WHO standards for smooth global approval.
Integrated Turnkey Capability
End-to-end solutions from design to delivery, ready for operation.
Reliable Performance & Stability
Durable systems ensuring stable output and reduced downtime.
Share This Product
Brief Introduction

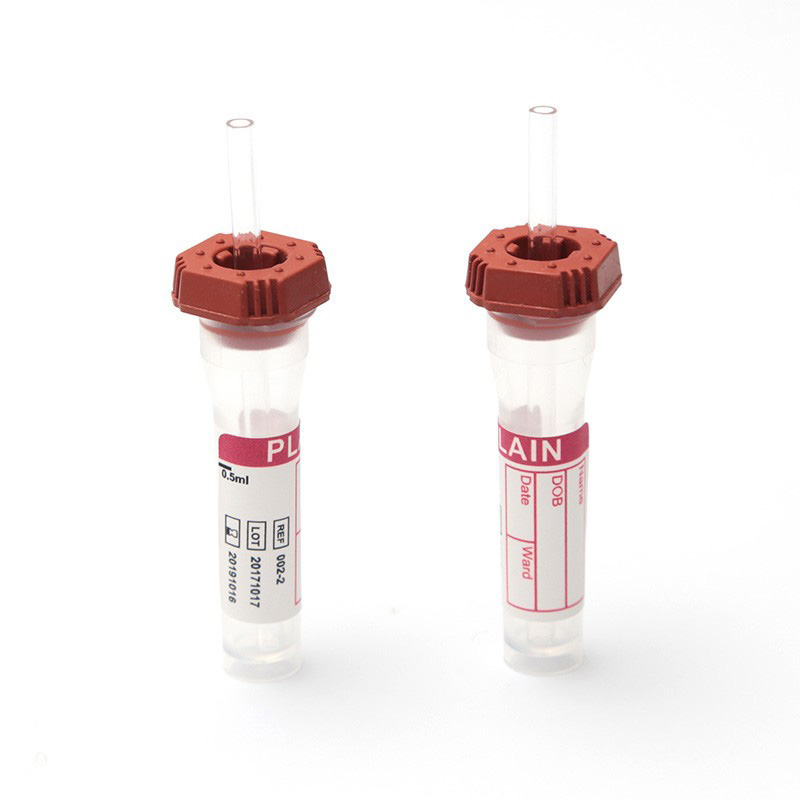

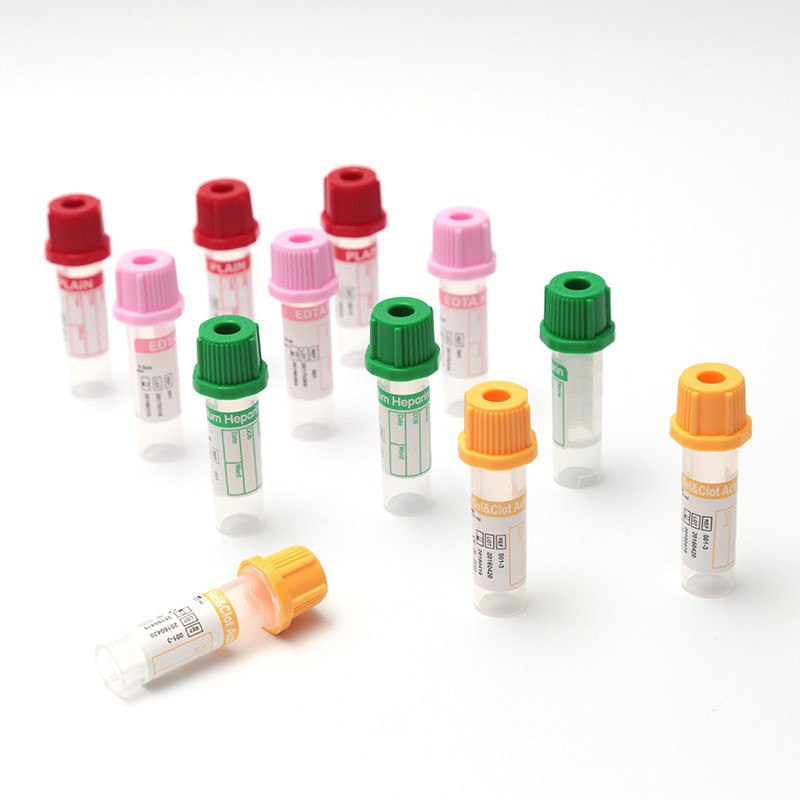

Micro blood collection tube serves as easy to collect blood form fingertip, earlobe or heel in neonates and pediatric patients. IVEN micro blood collection tube machine streamlines operations by allowing the automatic processing of the tube loading, dosing, capping and packing. It improves workflow with a one-piece micro blood collection tube production line and requires few personnel operate.
Product Video
Our Advantage
- High degree of automation — fully automatic assembly operation, reasonable optimization and integration of operation process, automatic capping to finished product output. The whole production line only needs 1-2 skilled operators to meet the production requirements;
- High cost performance, mobility and marriage rate of equipment — modular design, compact structure, and can be automatically assembled according to the actual production needs of customers.
- High degree of human-machine dialogue — humanized station design, humanized human-machine interface program design, display multi-function alarm and auxiliary troubleshooting;
- Process control, quality control – material shortage detection, dosing action detection, drying temperature detection, cap in place detection, missing cap detection and other detection, etc. Each process is tested and controlled, high qualified rate;
- The dosing system is precise in dosing, and dosing the corresponding products in a targeted manner. The atomizing and dosing station is equipped with ultrasonic automatic cleaning nozzle function.
- Ultrasonic automatic cleaning nozzle, and designed with a drying function, you can set the cleaning frequency according to process requirements, no need to clean the nozzle manually. (Atomizing and dosing station)
- SUS304 material sheet metal, frame and door sheet adopt nano processing, steel structure frame, high rigidity and shock absorption welded steel structure frame.
Configuration Description
| Component | Description |
| Pneumatic | AIRTAC cylinder, solenoid valve, shangshun cylinder and other pneumatic components are used to ensure stable operation and long life. |
| Electrical | Siemens PLC, Mitsubishi servo motor, Panasonic sensor, and other electrical components are used to ensure precise control and stable operation. |
| Mechanical | High-precision linear guide, ball screw, and other mechanical components are used to ensure smooth operation and high accuracy. |
| Software | Customized software for automatic control, data collection, and real-time monitoring to ensure efficient production and quality control. |
Technical Parameters
| Parameter | Value |
| Production Capacity | 1000-2000 pcs/hour |
| Tube Diameter | 8mm, 13mm, 16mm |
| Tube Length | 75mm, 100mm, 120mm |
| Power Supply | 220V/380V, 50Hz/60Hz |
| Air Pressure | 0.6-0.8 MPa |
| Machine Dimension | 2000mm (L) x 1500mm (W) x 1800mm (H) |
| Weight | Approx. 1500kg |
